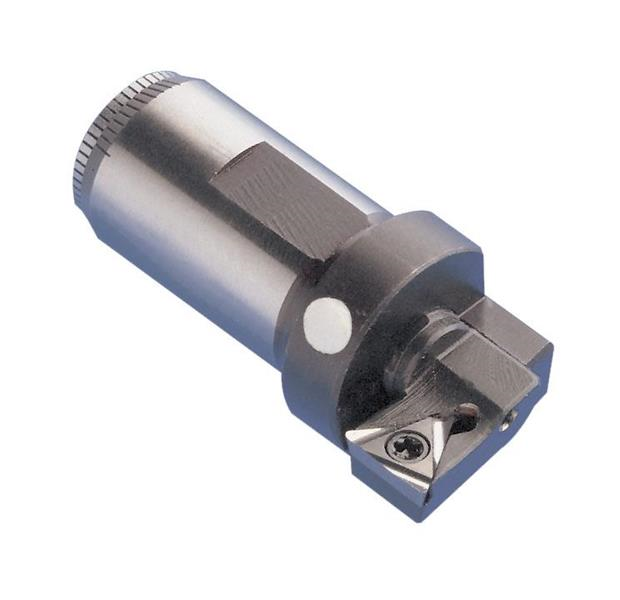

Right Hand, 1.85 Inch Min Bore Diameter, TP.. 0902 Boring Cartridge

  • Item Code: M30 20221
  • Brand: Komet
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Back of Bar to Cutting Edge 0.7490 Inch
Complete Insert Compatibility TPGX 090204 FN-12; TPHB 090204 F; TPHB 090204 FN; TPHB 090204 FN-P; TPHB 090208 FN-P; W32 13150..
Insert Style TP.. 0902
Minimu Bore Diameter 1.8500 Inch
Minimum Bore Diameter 46.99mm
Mount Bars Straight
Overall Length 45.01mm
Cartridge Size 16
Projection 0.8270 Inch
Series Kometric
Brand Komet
Center Offset 0.4330 Inch
Type Boring Cartridge
Cutting Direction Right Hand
