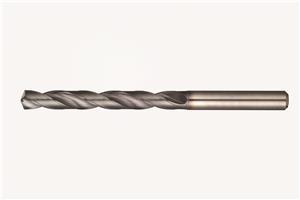

3/16 Inch, 135 Degree Drill Point Anlge, TiAICr/TiSi Coated, Solid Carbide Jobber Drill
- Item Code: MDW01875HGS5
- Brand: Sumitomo
- Unit Size: 1
Description
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum chromium (TiAlCr) and titanium silicon (TiSi) is a super multi-layered coating. The TiAlCr/TiSi coating is used for general purpose applications without coolant thru
Features
Back To Top- Long Tool Life
- New cutting edge design and special DEX coating provide long tool life in a wide variety of work materials.
- Stable Chip Evacuation
- New flute design and wide chip pocket allows for excellent chip management and evacuation.
- Quiet Cutting & Stable Cutting
- Stable drilling with minimal vibration even in small machine applications
- Environmentally Friendly
- Compatible with MQL (Minimum Quantity Lubrication) Systems.
Tech Specs
Back To Top| Fractional Size | 3/16" |
|---|---|
| Metric Size | 4.76 mm |
| Shank Diameter | 0.1875 Inch |
| Decimal Size | 0.1875" |
| Product Name | Jobber Drill |
| End Type | Single |
| Material | Solid Carbide |
| Series | MDW-HGS5 |
| Shank Length | 2.0472 Inch |
| Length of Cut | 1.7323 Inch |
| Brand | Sumitomo |
| Coating/Finish | Nano |
| Depth Diameter Ratio | 5xD |
| Overall Length | 3.8583 Inch |
| Coolant Supply | Internal |
| Point Angle | 135 Degree |
