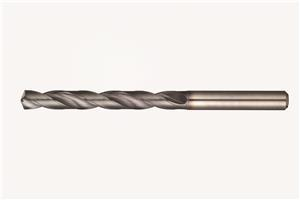

#3, 0.2130 Decimal Equivalent, 135 Degree Drill Point Angle, TiAICr/TiSi Coated, Solid Carbide Screw Machine Drill Bit

  • Item Code: MDW02130HGS3S
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Long Tool Life
    • New cutting edge design and special DEX coating provide long tool life in a wide variety of work materials.
    • Stable Chip Evacuation
    • New flute design and wide chip pocket allows for excellent chip management and evacuation.
    • Quiet Cutting & Stable Cutting
    • Stable drilling with minimal vibration even in small machine applications
    • Environmentally Friendly
    • Compatible with MQL (Minimum Quantity Lubrication) Systems.

Tech Specs

Back To Top
Coolant Supply Internal
Point Angle 135 Degree
Shank Diameter 6.0 MM
Brand Sumitomo
Depth Diameter Ratio 3xD
Product Name Screw Machine Drill
Wire Size #3
Coating/Finish Nano
Series MDW-HGS3
Metric Size 5.41 mm
Decimal Size 0.2130"
Shank Length 2.0870 Inch
Length of Cut 1.0830 Inch
Overall Length 3.2280 Inch
End Type Single
Material Solid Carbide
