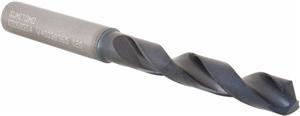

0.3160 Inch, 135 Degree Drill Point Angle, TiAICr/TiSi Coated, Solid Carbide Maintenance Drill Bit
- Item Code: MDW03160GS4
- Brand: Sumitomo
- Unit Size: 1
Description
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
Titanium Aluminum chromium (TiAlCr) and titanium silicon (TiSi) is a super multi-layered coating. The TiAlCr/TiSi coating is used for general purpose applications without coolant thru.
Features
Back To Top- Long Tool Life
- New cutting edge design and special DEX coating provide long tool life in a wide variety of work materials.
- Stable Chip Evacuation
- New flute design and wide chip pocket allows for excellent chip management and evacuation.
- Quiet Cutting & Stable Cutting
- Stable drilling with minimal vibration even in small machine applications
- Environmentally Friendly
- Compatible with MQL (Minimum Quantity Lubrication) Systems.
Tech Specs
Back To Top| Length of Cut | 2.0866 Inch |
|---|---|
| Shank Length | 1.6929 Inch |
| Coating/Finish | Nano |
| Coolant Supply | External |
| Depth Diameter Ratio | 4xD |
| Overall Length | 3.8583 Inch |
| Series | MDW-GS4 |
| End Type | Single |
| Shank Diameter | 0.3594 Inch |
| Product Name | Jobber Drill |
| Decimal Size | 0.3160" |
| Material | Solid Carbide |
| Point Angle | 135 Degree |
| Metric Size | 8.03 mm |
| Brand | Sumitomo |
