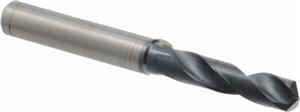

3.2mm, 135 Degree Drill Point Angle, TiAICr/TiSi Coated, Solid Carbide Screw Machine Drill Bit

  • Item Code: MDW0320GS2
  • Brand: Sumitomo
  • Unit Size: 1

Description

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.

Titanium Aluminum chromium (TiAlCr) and titanium silicon (TiSi) is a super multi-layered coating. The TiAlCr/TiSi coating is used for general purpose applications without coolant thru.

Features Tech Specs

Features

Back To Top
    • Long Tool Life
    • New cutting edge design and special DEX coating provide long tool life in a wide variety of work materials.
    • Stable Chip Evacuation
    • New flute design and wide chip pocket allows for excellent chip management and evacuation.
    • Quiet Cutting & Stable Cutting
    • Stable drilling with minimal vibration even in small machine applications
    • Environmentally Friendly
    • Compatible with MQL (Minimum Quantity Lubrication) Systems.

Tech Specs

Back To Top
End Type Single
Material Solid Carbide
Overall Length 54.0 MM
Series MDW-GS2
Product Name Screw Machine Drill
Point Angle 135 Degree
Coating/Finish Nano
Shank Length 33.0 MM
Brand Sumitomo
Metric Size 3.20 mm
Decimal Size 0.1260"
Depth Diameter Ratio 2xD
Shank Diameter 4.0 MM
Coolant Supply External
Length of Cut 19.0 MM
