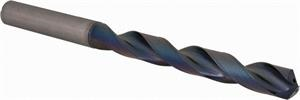

33/64 Inch, 135 Degree Drill Point Angle, TiAICr/TiSi Coated, Solid Carbide Jobber Drill
- Item Code: MDW05156HGS5
- Brand: Sumitomo
- Unit Size: 1
Description
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
Titanium Aluminum chromium (TiAlCr) and titanium silicon (TiSi) is a super multi-layered coating. The TiAlCr/TiSi coating is used for general purpose applications without coolant thru.
Features
Back To Top- Long Tool Life
- New cutting edge design and special DEX coating provide long tool life in a wide variety of work materials.
- Stable Chip Evacuation
- New flute design and wide chip pocket allows for excellent chip management and evacuation.
- Quiet Cutting & Stable Cutting
- Stable drilling with minimal vibration even in small machine applications
- Environmentally Friendly
- Compatible with MQL (Minimum Quantity Lubrication) Systems.
Tech Specs
Back To Top| Overall Length | 6.5748 Inch |
|---|---|
| Material | Solid Carbide |
| Product Name | Jobber Drill |
| End Type | Single |
| Length of Cut | 4.0945 Inch |
| Series | MDW-HGS5 |
| Shank Length | 2.4803 Inch |
| Coolant Supply | Internal |
| Point Angle | 135 Degree |
| Metric Size | 13.09 mm |
| Brand | Sumitomo |
| Decimal Size | 0.5156" |
| Depth Diameter Ratio | 5xD |
| Coating/Finish | Nano |
| Shank Diameter | 0.5156 Inch |
| Fractional Size | 33/64" |
