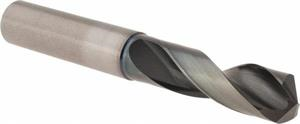

9/16 Inch, 135 Degree Point Angle, TiAICr/TiSi Coated, Solid Carbide Screw Machine Drill Bit
- Item Code: MDW05625GS2
- Brand: Sumitomo
- Unit Size: 1
Description
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum chromium (TiAlCr) and titanium silicon (TiSi) is a super multi-layered coating. The TiAlCr/TiSi coating is used for general purpose applications without coolant thru
Features
Back To Top- Long Tool Life
- New cutting edge design and special DEX coating provide long tool life in a wide variety of work materials.
- Stable Chip Evacuation
- New flute design and wide chip pocket allows for excellent chip management and evacuation.
- Quiet Cutting & Stable Cutting
- Stable drilling with minimal vibration even in small machine applications
- Environmentally Friendly
- Compatible with MQL (Minimum Quantity Lubrication) Systems.
Tech Specs
Back To Top| Length of Cut | 2.0472 Inch |
|---|---|
| Overall Length | 4.2520 Inch |
| Fractional Size | 9/16" |
| Material | Solid Carbide |
| Metric Size | 14.29 mm |
| Coating/Finish | Nano |
| Series | MDW-GS2 |
| Depth Diameter Ratio | 2xD |
| Shank Length | 2.1654 Inch |
| Brand | Sumitomo |
| Coolant Supply | External |
| End Type | Single |
| Shank Diameter | 0.5937 Inch |
| Decimal Size | 0.5625" |
| Product Name | Screw Machine Drill |
| Point Angle | 135 Degree |
