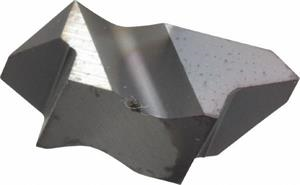

INSERT NTF2R-KC5010 KENNAMETAL

  • Item Code: NTF2R-KC5010
  • Brand: Kennametal
  • Unit Size: 1

Description

Features

Back To Top
    • Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
    • Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.08mm
External Pitch 0.60-1.75
External Threads Per Inch 14-44
Insert Size 2
Internal Pitch 1mm-2mm
Internal Threads Per Inch 12-24
Thickness 3.81mm
Thread Standard Partial Profile 60
Tip to Top of Insert 2.79mm
Coating Process PVD
Coating/Finish TiAlN
Material Grade C3/C4
Series Top Notch
Insert Hand Right Hand
Included Angle of Threading Tip 60°
Brand Kennametal
Manufacturer''s Grade KC5010
Type Insert
Insert Style NTF
Material Solid Carbide
