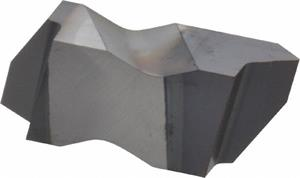

INSERT NTF3R-KC5010 KENNAMETAL

  • Item Code: NTF3R-KC5010
  • Brand: Kennametal
  • Unit Size: 1

Description

Features

Back To Top
    • Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
    • Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
External Pitch 0.60-2.50
External Threads Per Inch 10-44
Insert Style NTF
Thickness 4.95mm
Tip to Top of Insert 3.58mm
Coating Process PVD
Coating/Finish TiAlN
Corner Radius 0.08mm
Series Top Notch
Insert Hand Right Hand
Included Angle of Threading Tip 60°
Brand Kennametal
Manufacturer''s Grade KC5010
Rake Neutral
Insert Size 3
Material Solid Carbide
Thread Standard Partial Profile 60
Material Grade C3/C4
