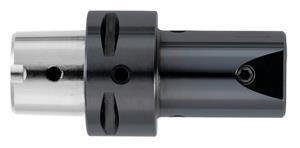

0.5000 in. (1/2) Internal Diameter x 1.528 in. Head Length x C6 Shank Type Quick Change Holder

  • Item Code: QT-500-C6
  • Brand: Micro 100
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • PSC holder design combines Capto® compatible connection with proprietary Micro-Quik quick change system
    • PSC flange designed for use on lathes with or without an automatic tool changer
    • Short head length accommodates smaller work envelopes and provides maximum rigidity
    • ID threaded for use with coolant adapter
    • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
    • Unique “3 point” locking and locating system ensures axial and radial tool repeatability , tip-to-tip consistency, and part-to-part accuracy
    • Heat treated for added durability
    • Black oxide coated on all non-ground surfaces for corrosion resistance
    • Tool holder includes: hex wrench, locating/locking screw

Tech Specs

Back To Top
Brand Micro 100
Head Width 0.984"
Overall Length 3.89"
Overall Reach 1.528"
Shank Length 1.496"
Thread Size M20 x 2.0
Tool Holder Bore Diameter 0.5000" (1/2)
Type C6
Coating/Finish None
Product Type Quick Change
