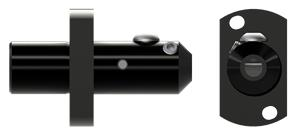

0.2500 in. (1/4) Bore Diameter x 22.000 mm Shank Diameter x 2.38 in. Overall Length Quick Change Star SR-20 Tool Holder

  • Item Code: QZST-422-SR20
  • Brand: Micro 100
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Quick change tool holder designed for use in Star swiss machine models SR-20, SB-16, SB-20R, SR-10J, SR-20J/JN, SR-20R, SR-20RIV, SR-32J/JN, SW-12RII, and SV-20R
    • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
    • Designed for use with the .1875", .2500", and .3125" diameter shank quick change tools
    • Qualify with quick change centerline indicating tool (QI)
    • Unique "3 point" locking and locating system ensures repeatability
    • Coolant delivered via external coolant port
    • Heat treated and black oxide coated for durability and corrosion resistance
    • Tool holder includes: hex wrench, QC-1 locating/locking screw, porting plug, straight coolant adapter
    • Precision manufactured in the USA

Tech Specs

Back To Top
Product Type Quick Change
Brand Micro 100
Overall Reach 1.400"
Tool Holder Length 1.006"
Overall Length 2.38"
Shank Diameter 22.000 mm
Tool Holder Bore Diameter 0.2500" (1/4)
Shank Length 0.984" (63/64)
Coating/Finish None
