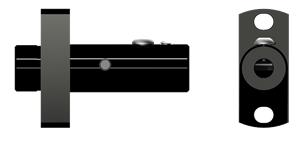

0.3125 in. (5/16) Bore Diameter x 16.000 mm Shank Diameter x 2.35 in. Overall Length Quick Change Star SR-10J Tool Holder

  • Item Code: QZST-516L-SR10J
  • Brand: Micro 100
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Quick change tool holder designed for use in Star swiss machine model SR-10J
    • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
    • Designed for use with the .1875", .2500", and .3125" diameter shank quick change tools
    • Qualify with quick change centerline indicating tool (QI)
    • Unique "3 point" locking and locating system ensures repeatability
    • Coolant delivered via external coolant port
    • Heat treated and black oxide coated for durability and corrosion resistance
    • Tool holder includes: hex wrench, QC-1 locating/locking screw, porting plug, straight coolant adapter
    • Precision manufactured in the USA

Tech Specs

Back To Top
Overall Length 2.35"
Overall Reach 1.956"
Product Type Quick Change
Tool Holder Length 1.606"
Shank Length 0.350"
Coating/Finish None
Shank Diameter 16.000 mm
Brand Micro 100
Tool Holder Bore Diameter 0.3125" (5/16)
