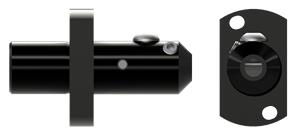

0.3125 in. (5/16) Bore Diameter x 22.000 mm Shank Diameter x 2.98 in. (2-63/64) Overall Length Quick Change Star SR-20 Tool Holder

  • Item Code: QZST-522L-SR20
  • Brand: Micro 100
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Quick change tool holder designed for use in Star swiss machine models SR-20, SB-16, SB-20R, SR-10J, SR-20J/JN, SR-20R, SR-20RIV, SR-32J/JN, SW-12RII, and SV-20R
    • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
    • Designed for use with the .1875", .2500", and .3125" diameter shank quick change tools
    • Qualify with quick change centerline indicating tool (QI)
    • Unique "3 point" locking and locating system ensures repeatability
    • Coolant delivered via external coolant port
    • Heat treated and black oxide coated for durability and corrosion resistance
    • Tool holder includes: hex wrench, QC-1 locating/locking screw, porting plug, straight coolant adapter
    • Precision manufactured in the USA

Tech Specs

Back To Top
Overall Length 2.98" (2-63/64)
Product Type Quick Change
Brand Micro 100
Overall Reach 2.000" (2)
Shank Diameter 22.000 mm
Tool Holder Length 1.606"
Shank Length 0.984" (63/64)
Tool Holder Bore Diameter 0.3125" (5/16)
Coating/Finish None
