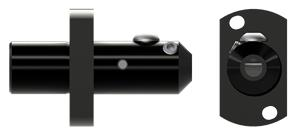

0.3750 in. (3/8) Bore Diameter x 22.000 mm Shank Diameter x 2.38 in. Overall Length Quick Change Star SR-20 Holder
- Item Code: QZST-622-SR20
- Brand: Micro 100
- Unit Size: 1
Description
Star Swiss Machines - SR-20
Features
Back To Top- Quick change tool holder designed for use in Star swiss machine models SR-20, SB-16, SB-20R, SR-10J, SR-20J/JN, SR-20R, SR-20RIV, SR-32J/JN, SW-12RII, and SV-20R
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- Designed for use with the .1875", .2500", and .3125" diameter shank quick change tools
- Qualify with quick change centerline indicating tool (QI)
- Unique "3 point" locking and locating system ensures repeatability
- Coolant delivered via external coolant port
- Heat treated and black oxide coated for durability and corrosion resistance
- Tool holder includes: hex wrench, QC-1 locating/locking screw, porting plug, straight coolant adapter
- QC-1 Locating locking screw recommended torque 18 inch lbs
- Precision manufactured in the USA
Tech Specs
Back To Top| Overall Reach | 1.400" |
|---|---|
| Brand | Micro 100 |
| Tool Holder Length | 1.006" |
| Tool Holder Bore Diameter | 0.3750" (3/8) |
| Coating/Finish | None |
| Shank Length | 0.984" (63/64) |
| Overall Length | 2.38" |
| Product Type | Quick Change |
| Shank Diameter | 22.000 mm |
