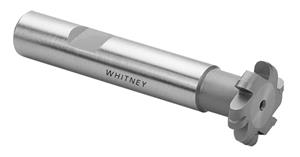

1/16 in. Radius x 3/4 in. Dia. x 1/8 in. Wide Uncoated Carbide Tipped Convex Radius Milling Cutter
- Item Code: R0625C
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Profile Ground Convex Radius Milling Cutters
Made in USA
Features
Back To Top- More teeth for faster cutting
- Better finish possible in many materials with profile ground
- Precision ground
- USA made Whitney quality
Tech Specs
Back To Top| UPC | 648672301195 |
|---|---|
| Fractional Cutting Diameter | 3/4" |
| Tooth Configuration | Straight |
| Number of Teeth | 6 |
| Shank Type | Weldon |
| OD Tolerance | +0.005", -0" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Brand | Whitney Tool |
| Overall Length (Inch) | 3" |
| Shank Diameter | 1/2" |
| Coating | None |
| Material | Carbide Tipped |
| Metric Cutting Diameter | 19.05 mm |
| Radius Fractional | 1/16" |
| Radius Tolerance | 0.001" |
