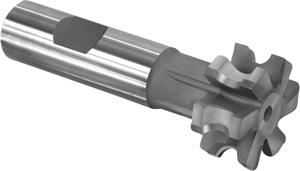

3/32 in. Radius x 7/8 in. Dia. x 1/2 in. Wide Uncoated Carbide Tipped Concave Radius Milling Cutter
- Item Code: R0937CAVC
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Profile Ground Concave Radius Milling Cutter
Made in USA
Features
Back To Top- More teeth for faster cutting
- Better finish possible in many materials with profile ground
- Precision ground
- USA made Whitney quality
Tech Specs
Back To Top| UPC | 648672302925 |
|---|---|
| Coating | None |
| Material | Carbide Tipped |
| OD Tolerance | +0.005", -0" |
| Fractional Cutting Diameter | 7/8" |
| Shank Diameter | 1/2" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Tooth Configuration | Straight |
| Metric Cutting Diameter | 22.225 mm |
| Overall Length | 3" |
| Radius Fractional | 3/32" |
| Radius Tolerance | 0.001" |
| Width Tolerance | 0.010" |
| Brand | Whitney Tool |
| Cut Width | 1/2" |
| Number of Teeth | 6 |
| Shank Type | Weldon |
