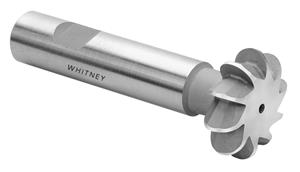

1/8 in. Radius x 1-1/4 in. Dia. x 1/4 in. Wide TiN Coated M42 Cobalt Convex Radius Milling Cutter
- Item Code: R1250M42T
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Profile Ground Convex Radius Milling Cutters
Made in USA
Features
Back To Top- More teeth for faster cutting
- Better finish possible in many materials with profile ground
- Precision ground
- USA made Whitney quality
Tech Specs
Back To Top| UPC | 648672253470 |
|---|---|
| Material | Cobalt |
| Number of Teeth | 10 |
| Tooth Configuration | Straight |
| Coating | TiN |
| Radius Tolerance | 0.001" |
| Brand | Whitney Tool |
| Fractional Cutting Diameter | 1-1/4" |
| Overall Length (Inch) | 3-1/2" |
| Radius Fractional | 1/8" |
| Shank Type | Weldon |
| Metric Cutting Diameter | 31.75 mm |
| Shank Diameter | 3/4" |
| Shank Diameter Tolerance | +0", -0.0005" |
| OD Tolerance | +0.005", -0" |
