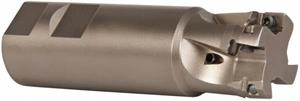

1-1/4 x 1-1/4 x 4-1/2 Inch, 4-Flute, 0.433 Max. Depth of Cut Indexable Square Shoulder End Mill

  • Item Code: R217.69-01.25-3-12-4AN
  • Brand: Seco
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Seco's Turbo Mill family of milling cutters aggressively optimizes cutting properties to reduce heat generation and cutting forces
    • Turbo Mills are widely flexible and can tackle almost every material and perform in a wide range of applications including roughing, semi-finishing and finishing
    • Extremely flexible and reliable
    • Coated and hardened cutter body for maximum tool life
    • Maintains high tolerances and optimum precision
    • Performs in a large range of materials

Tech Specs

Back To Top
Cutter Style R217.69-12A
Cutting Diameter (Decimal Inch) 1.2500
Cutting Diameter (Inch) 1-1/4"
Head Length (Decimal Inch) 1.3400
Insert Compatibility XO.X 1204..
Max. Depth of Cut (Decimal Inch) 0.4330
Max. RPM 18400
No. of Cutter Inserts 4
Overall Length/Projection (Decimal Inch) 4.2500
Series Super Turbo
Shank Length (Decimal Inch) 2.9100
Shank Type Straight Shank
Through Coolant Coolant Through
Insert Holding Method Screw
No. of Flutes 4
Product Type Shoulder Mill
Shank Diameter (Decimal Inch) 1.2500
Brand Seco
Weldon Flat Yes
