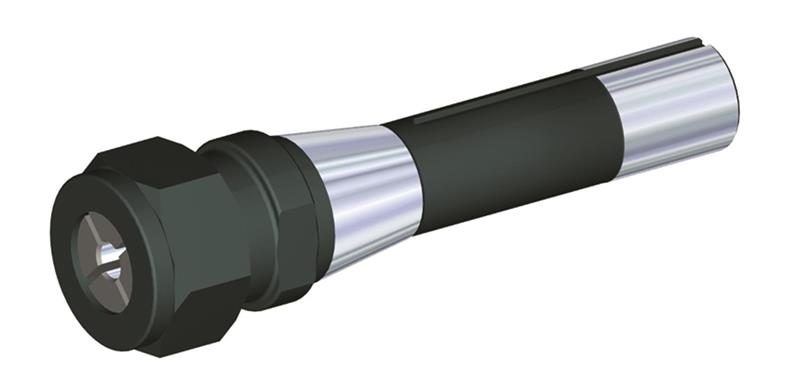

1.730 Inch Body Dia. 5.812 OAL 180 Double Angle 08 Style Collet Chuck
- Item Code: R8DA188181
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series DA180
Industry-standard Erickson™ double-angle collet system collet system
Features
Back To Top- Original Erickson standard
- Versatile double-angle design providing approximately 1:1 grip
- Bonded style available for through-coolant applications
- Non-pullout style to captivate Weldon®-style end mills
- Dedicated versions for tapping €” driving off the square of the tap. Double
Tech Specs
Back To Top| Adjustment Range | 2.3620 Inch |
|---|---|
| Body Diameter | 1.7300 Inch |
| Clamping Length | 2.2890 Inch |
| Flange Length | 9.00 MM |
| Gage Length | 1.8120 Inch |
| Nut Diameter | 1.7300 Inch |
| Overall Length | 5.8120 Inch |
| Shank Length | 4 Inch |
| Product Name | Collet Chucks |
| Brand | WIDIA-Erickson |
| Hand of Tool | Neutral |
