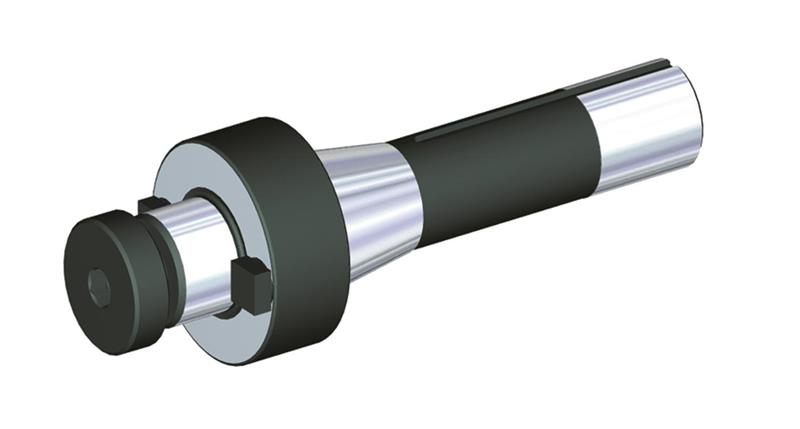

R8 Taper, 1 Inch Pilot Diameter, 25.91 mm Projection, Shell Mill Holder
- Item Code: R8SM100102
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adapter Style Machine Side |
Bridgeport R-8 |
| Adapter Style Machine Side-EPP |
BRP-01 Standard R8 |
| Adapter Type Machine Side |
Bridgeport |
| Adapter Type Machine Side-EPP |
BRP - Bridgeport Shank |
| Adapter/Shank/Bore Diameter (Fractional) |
1.2410 |
| Adapter/Shank/Bore Diameter (Inch) |
1.2410 |
| Adapter/Shank/Bore Diameter (mm) |
31.521 |
| Body Diameter 1 Workpce Side (In) |
1.9690 |
| Body Diameter 1 Workpce Side (mm) |
50.000 |
| Brand |
WIDIA-Erickson |
| Cutter Ret Screw ID Drive Size |
5/16 |
| Flange Length (Metric) |
23.368 |
| Gage Length 1 (Inch) |
1.0200 |
| Gage Length 1 (Metric) |
25.910 |
| Overall Length (Metric) |
144.983 |
| Pilot Length (Inch) |
0.6875 |
| Pilot Length (Metric) |
17.463 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
25.400 |
| Adapter Size Machine Side-EPP |
0080 |
| Shank Length (Inch) |
4.0000 |
| System Size Machine Side |
R8 |
| Adapt/Shank/Bore Diameter WKPS (In) |
1.0000 |
| Adapt/Shank/Bore Diameter WKPS F |
1 |
| Overall Length (Inch) |
5.7080 |
| Shank Length (Metric) |
101.600 |
| Units of Tool (Extract) |
IN - Inch |
| Adapter Size Workpiece Side |
1000 |
