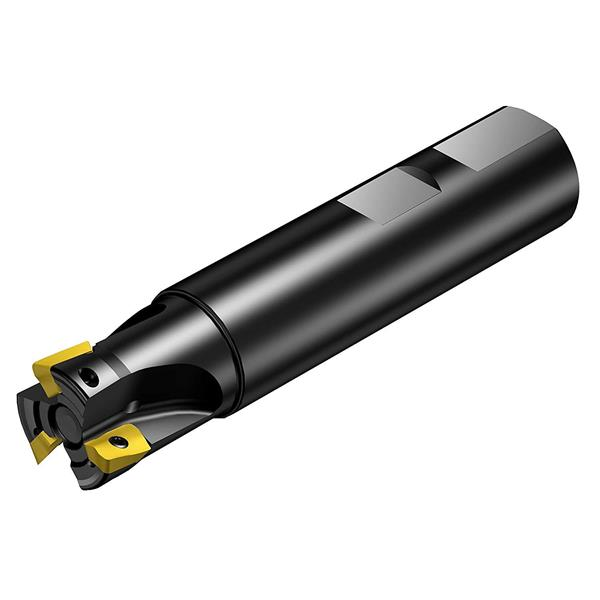

1-1/4" CoroMill 390 Square Shoulder Milling Cutter

  • Item Code: RA390-032M32-11H
  • Brand: Sandvik Coromant
  • Unit Size: 1

Description

CoroMill 390 covers many applications with a large, versatile program, including cutter versions for shoulder milling and long edge milling. The cutters generate a good quality 90-degree shoulder and are ideal for ramping and helical interpolation.

The light-cutting insert geometries and high-performance grades of CoroMill 390 are designed for low cutting forces and vibration-free machining for secure milling in all materials.

Features Tech Specs

Features

Back To Top
    • Weldon shank mount
    • Internal coolant supply
    • Designed for high speed machining
    • Large depth of cut and steep ramping capabilities
    • Feed per tooth up to .014 inch/tooth or .35 mm
    • Available as coarse, close and extra close pitch for maximum performance in different conditions
    • Secure insert geometry's and grades, optimized by application, make high removal rates possible
    • Self-locating inserts

Tech Specs

Back To Top
Brand Sandvik Coromant
Product Type Shoulder Mill
