A Style, DV50 Taper, M24 x 3 Thread, 75 Degree Angle Radius, Standard Retention Knob

  • Item Code: RK50DVM
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.

Tech Specs

Back To Top

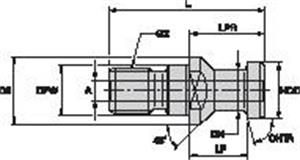

Body Diameter Machine Side (In) 1.4134
Body Diameter Machine Side (mm) 35.900
Catalog Wrench Reference RKW50M
Functional Length (Inch) 0.9843
Functional Length (Metric) 25.000
Head Diameter (Inch) 1.1012
Head Diameter (Metric) 27.970
Neck Diameter (Inch) 0.8248
Neck Diameter (Metric) 20.950
Overall Length (Inch) 2.9134
Overall Length (Metric) 74.000
Pilot Diameter Wkpc Side (Inch) 0.9831
Pilot Diameter Wkpc Side (mm) 24.970
Width of Flat (Inch) 1.1811
Width of Flat (Metric) 30.000
Brand WIDIA-Erickson
Coolant Supply Yes
Units of Tool (Extract) MM - Metric
