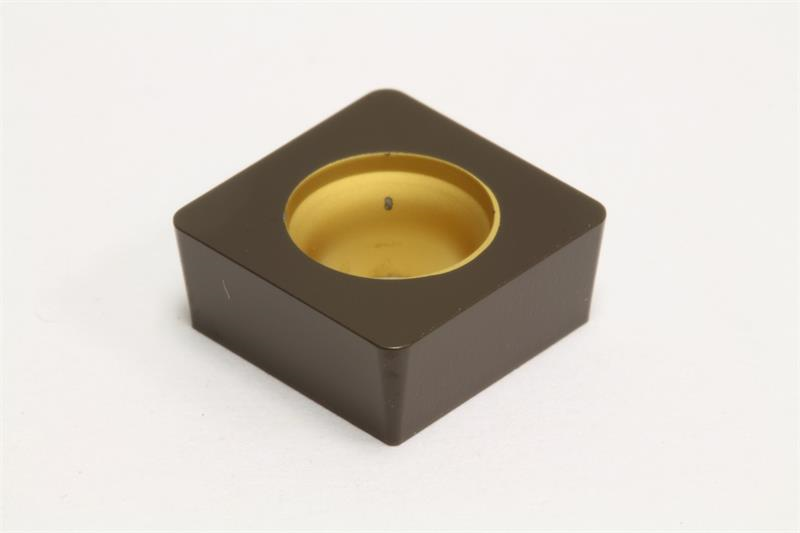

SCMA32.52 Grade AC4015K Carbide Turning Insert
- Item Code: SCMA32.52 AC4015K
- Brand: Sumitomo
- Unit Size: 1
Description
Al2O3/TiCN Coated
Sold in Packs of 10
Tech Specs
Back To Top| Chipbreaker | None |
|---|---|
| Holding Method | Pin or Screw |
| Hole Diameter | 4.40 mm |
| Material Grade | K15 |
| Rake Angle | 0 |
| Thickness | 5/32" |
| Grade | AC4015K |
| Inscribed Circle | 3/8" |
| Corner Radius | 1/32" |
| Insert Size | 32.52 |
| Relief Angle | 7° |
| Included Angle | 90 |
| Material | Solid Carbide |
| Rake | Positive |
| Brand | Sumitomo |
| Insert Style | SCMA |
| Shape | Square |
| Product Type | Turning |
