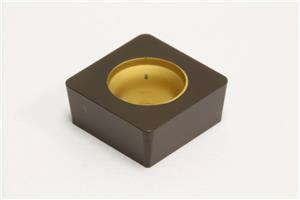

SCMA432 AC4015K Grade, Proprietary Coated, Carbide Turning Insert

  • Item Code: SCMA432-AC4015K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC4015K
Insert Size 432
Insert Type Positive
Mounting Hole Diameter 0.2165 Inch
Number of Edges 4
Chipbreaker Type No
Insert Style SCMA
Shape Square
Brand Sumitomo
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 90
Inscribed Circle 0.5000 Inch
Corner Radius 0.0313 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Material Solid Carbide
Coating/Finish CVD
