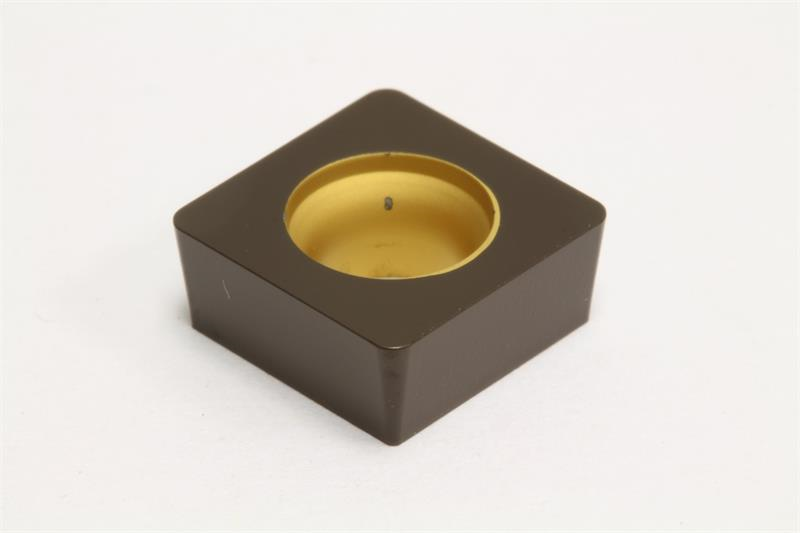

SCMA432 AC420K Grade, Proprietary Coated, Carbide Turning Insert

  • Item Code: SCMA432-AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style SCMA
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Brand Sumitomo
Insert Type Positive
Chipbreaker Type No
Included Angle 90
Insert Size 432
Shape Square
Grade AC420K
Mounting Hole Diameter 0.2165 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Coating/Finish CVD
Relief Angle 7 Degree
Material Solid Carbide
Corner Radius 0.0313 Inch
Number of Edges 4
