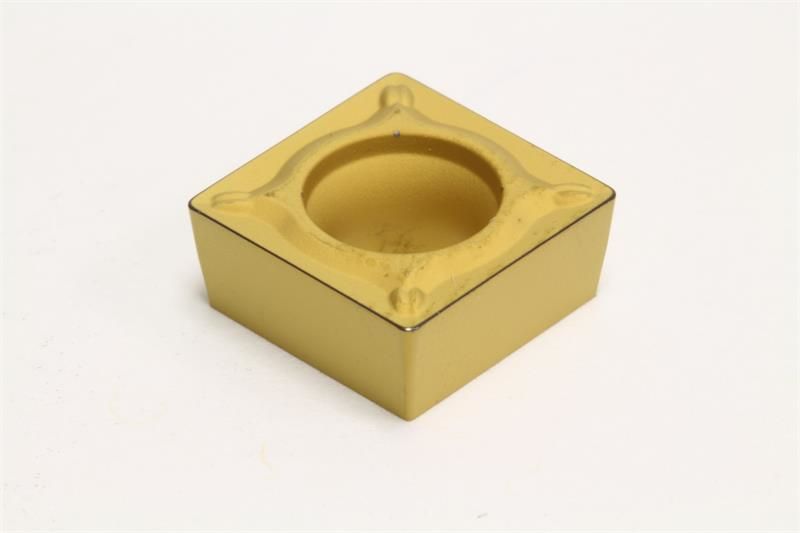

SCMT32.51 ESU AC820P, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SCMT32.51ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Grade AC820P
Insert Style SCMT
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Number of Edges 4
Material Solid Carbide
Product Name Turning Insert
Brand Sumitomo
Rake Angle 8 Degree
Relief Angle 7 Degree
Shape Square
Corner Radius 0.0156 Inch
Inscribed Circle 0.3750 Inch
Insert Size 32.51
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 90
Thickness 0.0156 Inch
