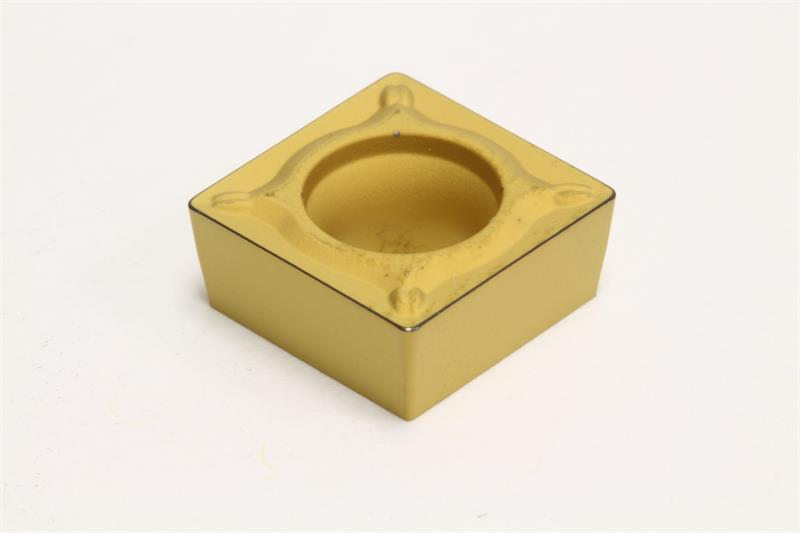

SCMT431 ESU AC820P, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SCMT431ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.2165 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Included Angle 90
Grade AC820P
Inscribed Circle 0.5000 Inch
Insert Style SCMT
Insert Type Positive
Material Solid Carbide
Brand Sumitomo
Chipbreaker Type ESU
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 4
Rake Angle 8 Degree
Relief Angle 7 Degree
Shape Square
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
