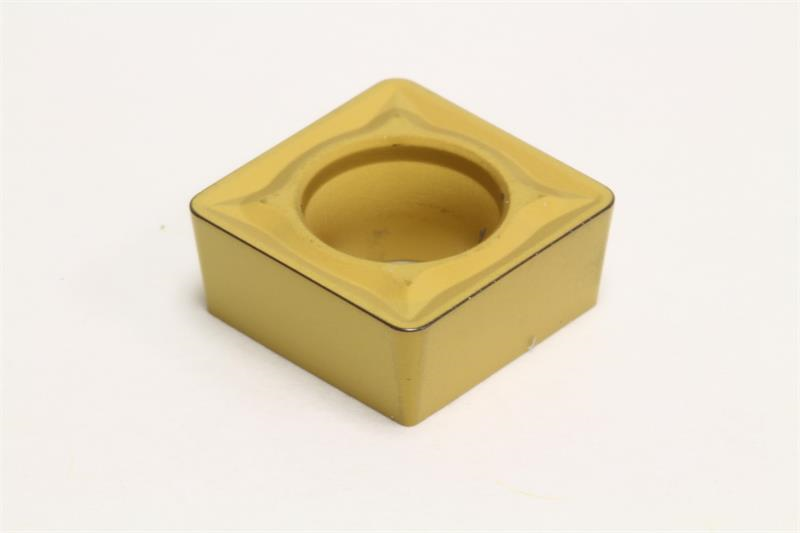

SCMT432 EMU AC700G, TiC Coated, Carbide Turning Insert

  • Item Code: SCMT432EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style SCMT
Insert Type Positive
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Chipbreaker Type EMU
Mounting Hole Diameter 0.2165 Inch
Product Name Turning Insert
Rake Angle 0 Degree
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Shape Square
Relief Angle 7 Degree
Insert Size 432
Brand Sumitomo
Included Angle 90
Coating/Finish Coated
Grade AC700G
Material Solid Carbide
