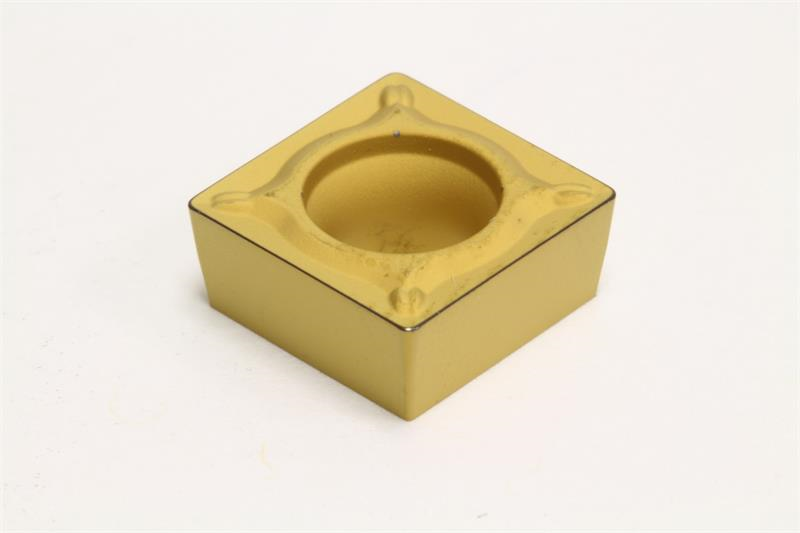

SCMT432 ESU AC820P, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SCMT432ESU-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Relief Angle 7 Degree
Brand Sumitomo
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Shape Square
Included Angle 90
Insert Size 432
Corner Radius 0.0313 Inch
Insert Style SCMT
Insert Type Positive
Number of Edges 4
Thickness 0.1875 Inch
Chipbreaker Type ESU
Grade AC820P
Mounting Hole Diameter 0.2165 Inch
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
