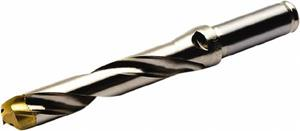

20.00mm (.7874) TiAlN Coated Through Coolant Indexable Replaceable Tip Drill

  • Item Code: SD105-20.00/21.99-125-1000R7
  • Brand: Seco
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Body Length (Decimal Inch) 6.2400
Flute Length (Decimal Inch) 5.4520
Max. Drill Depth (Decimal Inch) 4.9213
Max. Drill Diameter 21.99mm
Max. Drill Diameter (Decimal Inch) 0.8657
Min. Drill Diameter 20.00mm
Min. Drill Diameter (Decimal Inch) 0.7874
Overall Length (Decimal Inch) 8.4440
Series Crownloc
Shank Diameter (Decimal Inch) 1.000
Shank Length (Decimal Inch) 2.2040
Brand Seco
Through Coolant Yes
Product Type Drill
Toolholder Style SD105
Shank Type Weldon Flat
Coating/Finish TiAlN
