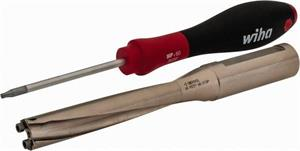

0.4921 to 0.5114 Inch Drill Diameter, 2-29/32 Inch Drill Depth, 5/8 Inch Diameter, Weldon Flat Shank, Through Coolant, Replaceable Tip Drill
- Item Code: SMDH049L
- Brand: Sumitomo
- Unit Size: 1
Description
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
Features
Back To Top- Available in metric and inch diameters ranging from 0.4688€ - 1.2008€ (30.5mm)
- Available in 3X, 5X and 8X diameter hardened steel bodies that can accept multiple diameters
- Three styles of drill tips to maximize performance
- SMDT-MTL - standard edge preparation for steel applications
- SMDT-MEL - light edge preparation for super alloys, stainless steels, and cast irons
- SMDT-MTL-C - chamfered edges to eliminate break out in cast iron
- SMD carbide tips have Sumitomo€™s patented wear resistant DEXTM coatings
- Ground serrations on back of drill tip allow for precise assembly and superior repeatability
- Every drill tip is made with the famous Sumitomo Point
- Drill tips are capable of being reground
- Coolant through drill bodies
Tech Specs
Back To Top| Gage Length | 3.6250 Inch |
|---|---|
| Max Depth of Cut | 2.9060 Inch |
| Decimal Size | 0.4921 - 0.5114" |
| Product Name | Jobber Drill |
| Series | SMD |
| End Type | Single |
| Material | Carbide Tipped |
| Metric Size | 12.50 - 12.99 mm |
| Type | Replaceable Tip |
| Wrench | TRDR08IP |
| Overall Length | 5.5000 Inch |
| Point Angle | 140 Degree |
| Shank Length | 1.8750 Inch |
| Depth Diameter Ratio | 5xD |
| Screw | BXD02208IP |
| Shank Diameter | 0.6250 Inch |
| Brand | Sumitomo |
