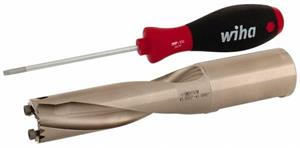

1.0555 to 1.0945 Inch Drill Diameter, 3.701 Inch Drill Depth, 1-1/4 Inch Diameter, Straight Shank, Through Coolant, Replaceable Tip Drill
- Item Code: SMDH107M
- Brand: Sumitomo
- Unit Size: 1
Description
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
Features
Back To Top- Available in metric and inch diameters ranging from 0.4688€ - 1.2008€ (30.5mm)
- Available in 3X, 5X and 8X diameter hardened steel bodies that can accept multiple diameters
- Three styles of drill tips to maximize performance
- SMDT-MTL - standard edge preparation for steel applications
- SMDT-MEL - light edge preparation for super alloys, stainless steels, and cast irons
- SMDT-MTL-C - chamfered edges to eliminate break out in cast iron
- SMD carbide tips have Sumitomo€™s patented wear resistant DEXTM coatings
- Ground serrations on back of drill tip allow for precise assembly and superior repeatability
- Every drill tip is made with the famous Sumitomo Point
- Drill tips are capable of being reground
- Coolant through drill bodies
Tech Specs
Back To Top| Decimal Size | 1.0555 - 1.0945" |
|---|---|
| Gage Length | 4.5170 Inch |
| Max Depth of Cut | 3.7010 Inch |
| Metric Size | 26.81 - 27.80 mm |
| Overall Length | 6.8900 Inch |
| Material | Carbide Tipped |
| Screw | BXD04014IP |
| Type | Replaceable Tip |
| Series | SMD |
| Shank Length | 2.3750 Inch |
| Depth Diameter Ratio | 3xD |
| Point Angle | 140 Degree |
| Product Name | Screw Machine Drill |
| Shank Diameter | 1.2500 Inch |
| End Type | Single |
| Brand | Sumitomo |
| Wrench | TRDR20IP |
