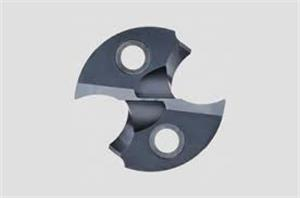

23 mm (0.9055 in.) Carbide SMDT-MTL Replaceable Drill Tip

  • Item Code: SMDT2300MTL-C ACX70
  • Brand: Sumitomo
  • Unit Size: 1

Description

Sumitomo Drill tips come with a wear resistant coating and are capable of being re-ground. They come with a choice of edge preps for steel, stainless steel, cast iron and super alloys. Ground serations on the back of the drill tip allow for precise assembly and superior repeatablility when used in conjunction with the appropriate drill body.

Features Tech Specs

Features

Back To Top
    • 140° angle replaceable drill tips
    • Available in metric and inch diameters ranging from 0.4688" - 1.6535" (42.0mm)
    • Available in 3X, 5X, 8X & now 1.5X & 12X diameterhardened steel bodies that can accept multiple diametersGround serrations on back of drill tip allow for precise assembly and superior repeat-ability
    • Drill tips are capable of being reground
    • Coolant through drill bodies

Tech Specs

Back To Top
Diameter 23.00 mm
Grade ACX70
Holder Size SMDH091
Tip Style Standard Tip (SMDT-MTL)
Type Carbide Replaceable Drill Tip
Brand Sumitomo
Material Solid Carbide
