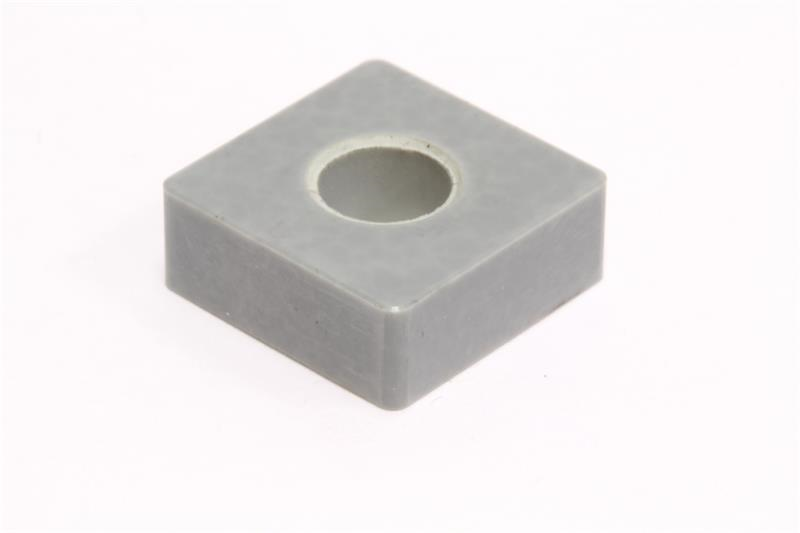

SNGA433 SN2000K Grade, 90 Degree Square, Ceramic Turning Insert

  • Item Code: SNGA433-SN2000K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Insert Style SNGA
Material Ceramic
Brand Sumitomo
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Thickness 0.1875 Inch
Corner Radius 0.0469 Inch
Inscribed Circle 0.5000 Inch
Shape Square
Grade SN2000K
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish Ceramic
Number of Edges 4
Product Name Turning Insert
Included Angle 90
Insert Size 433
