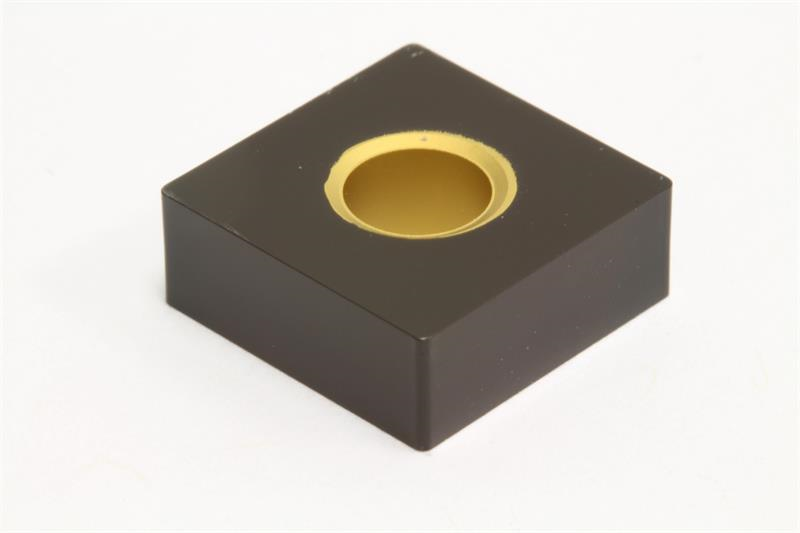

SNMA432 AC700G Grade, TiC Coated, 90 Degree Square, Carbide Turning Insert

  • Item Code: SNMA432 AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Insert Type Negative
Included Angle 90
Insert Style SNMA
Product Name Turning Insert
Thickness 0.1875 Inch
Grade AC700G
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Chipbreaker Type No
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Shape Square
Material Solid Carbide
Corner Radius 0.0313 Inch
Number of Edges 4
