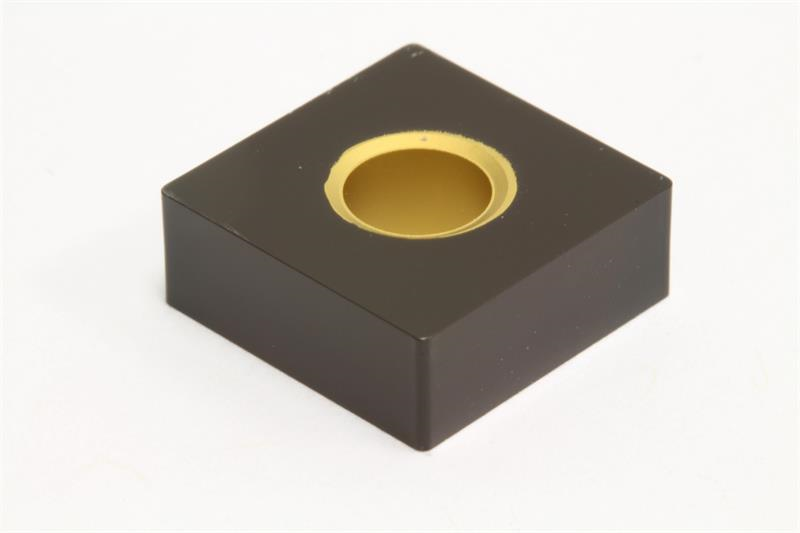

SNMA644 AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: SNMA644 AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style SNMA
Mounting Hole Diameter 0.3126 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type No
Included Angle 90
Insert Size 644
Shape Square
Brand Sumitomo
Corner Radius 0.0625 Inch
Thickness 0.2500 Inch
Coating/Finish Coated
Grade AC700G
Material Solid Carbide
Inscribed Circle 0.7500 Inch
Number of Edges 4
Product Name Turning Insert
Insert Type Negative
Relief Angle 0 Degree
