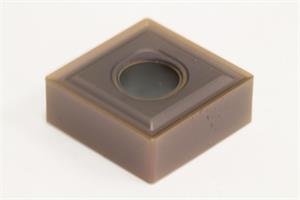

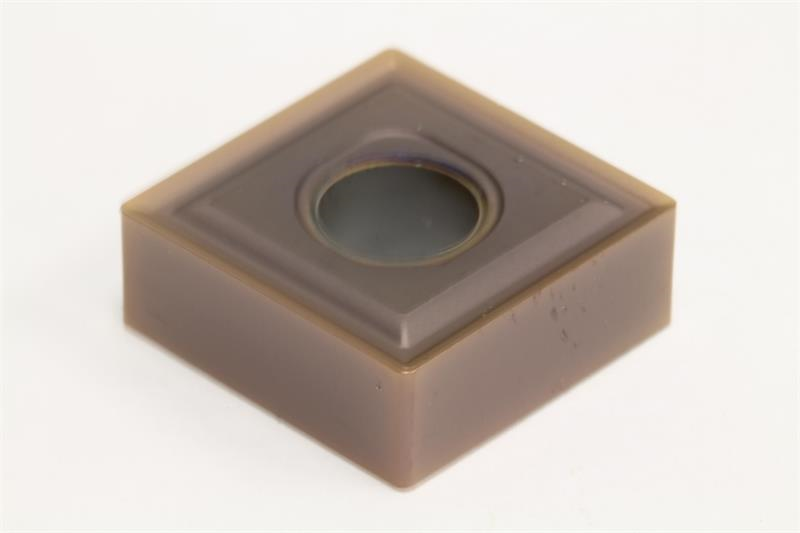

SNMG432 EEX AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: SNMG432EEX AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style SNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Type Negative
Rake Angle 16 Degree
Number of Edges 4
Chipbreaker Type EEX
Corner Radius 0.0313 Inch
Thickness 0.1875 Inch
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Grade AC510U
Material Solid Carbide
Shape Square
Brand Sumitomo
Included Angle 90
Product Name Turning Insert
