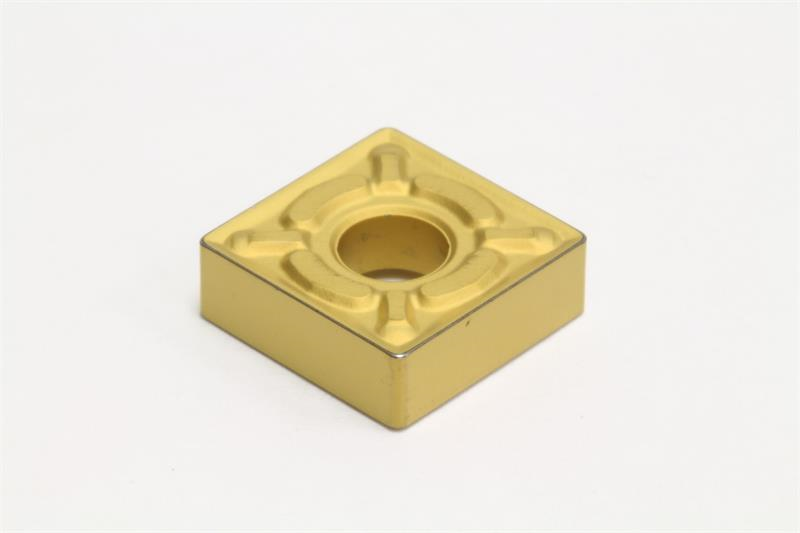

SNMG432 EGU AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SNMG432EGU AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Rake Angle 7 Degree
Relief Angle 0 Degree
Inscribed Circle 0.5000 Inch
Insert Type Negative
Brand Sumitomo
Included Angle 90
Chipbreaker Type EGU
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Shape Square
Corner Radius 0.0313 Inch
Insert Style SNMG
Number of Edges 4
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Grade AC630M
