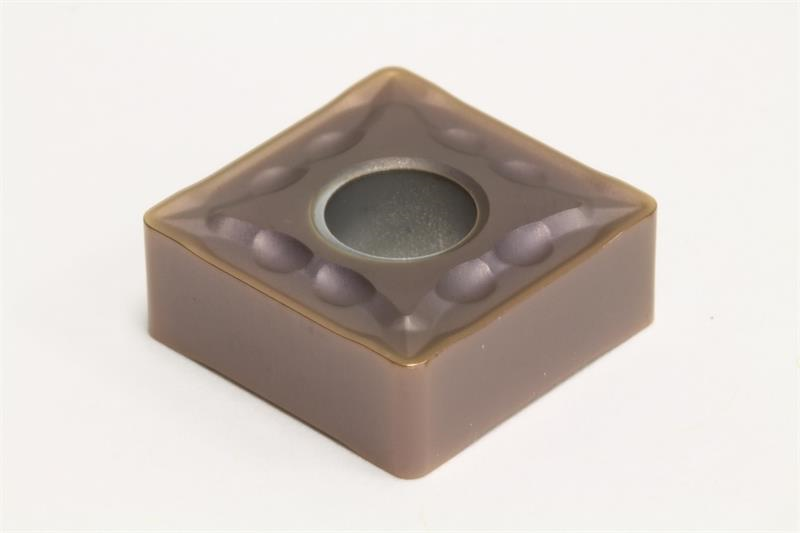

SNMG543 EMU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: SNMG543EMU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 543
Chipbreaker Type EMU
Brand Sumitomo
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0469 Inch
Inscribed Circle 0.6250 Inch
Mounting Hole Diameter 0.2500 Inch
Rake Angle 4 Degree
Shape Square
Grade AC520U
Included Angle 90
Material Solid Carbide
Thickness 0.2500 Inch
Insert Style SNMG
Number of Edges 4
Product Name Turning Insert
Insert Type Negative
Relief Angle 0 Degree
