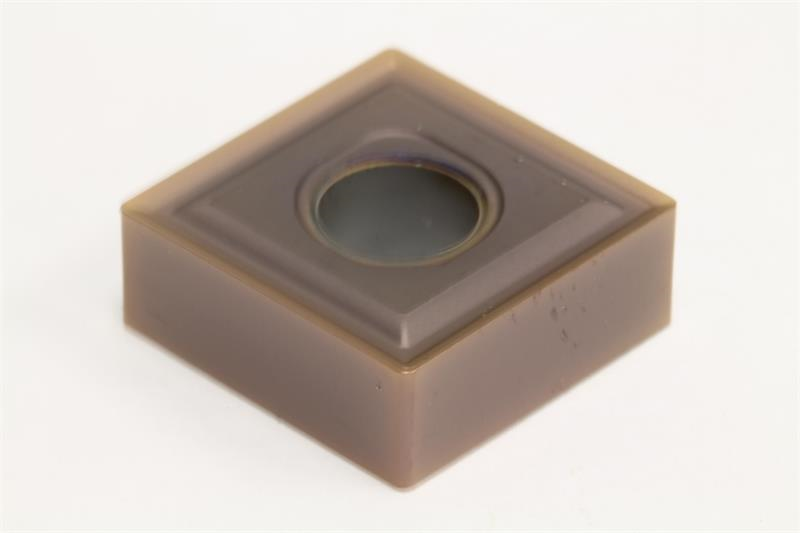

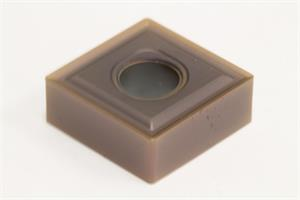

SNMG643 EEX AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: SNMG643EEX AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EEX
Mounting Hole Diameter 0.3126 Inch
Grade AC510U
Insert Style SNMG
Brand Sumitomo
Corner Radius 0.0469 Inch
Insert Size 643
Inscribed Circle 0.7500 Inch
Number of Edges 4
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Included Angle 90
Rake Angle 16 Degree
Shape Square
Material Solid Carbide
Thickness 0.2500 Inch
Insert Type Negative
Relief Angle 0 Degree
