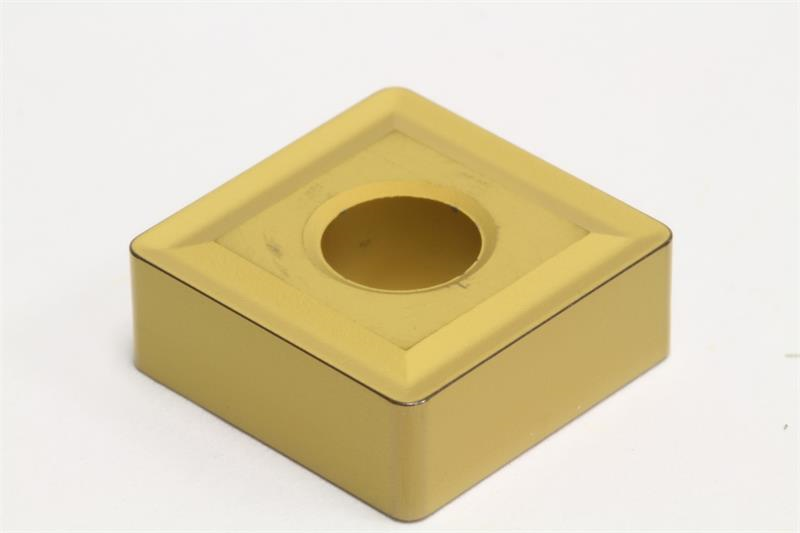

SNMG643 ENZ AC820P, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SNMG643ENZ AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Inscribed Circle 0.7500 Inch
Chipbreaker Type ENZ
Rake Angle 4 Degree
Relief Angle 0 Degree
Brand Sumitomo
Corner Radius 0.0469 Inch
Product Name Turning Insert
Shape Square
Coating/Finish CVD
Included Angle 90
Insert Style SNMG
Material Solid Carbide
Grade AC820P
Thickness 0.2500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Size 643
Insert Type Negative
Mounting Hole Diameter 0.3126 Inch
Number of Edges 4
