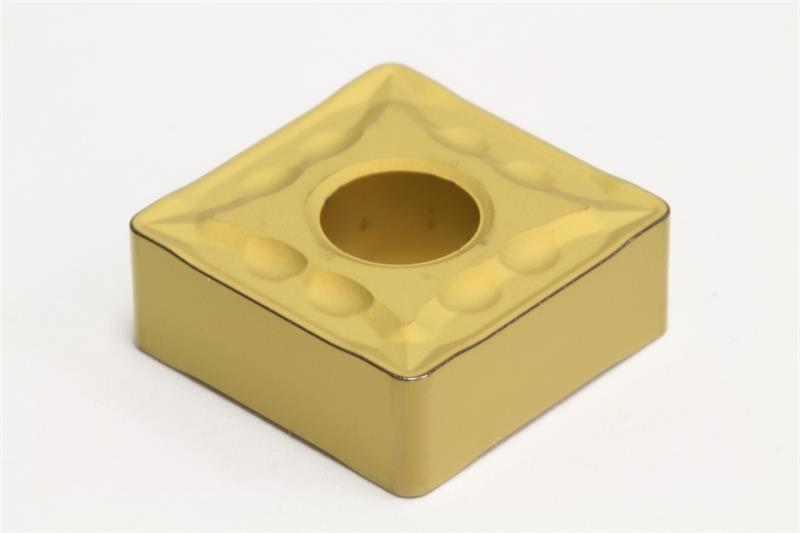

SNMG644 EMU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: SNMG644EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0625 Inch
Insert Type Negative
Brand Sumitomo
Inscribed Circle 0.7500 Inch
Shape Square
Thickness 0.2500 Inch
Chipbreaker Type EMU
Product Name Turning Insert
Grade AC700G
Rake Angle 4 Degree
Relief Angle 0 Degree
Coating/Finish Coated
Mounting Hole Diameter 0.3126 Inch
Number of Edges 4
Included Angle 90
Insert Size 644
Insert Style SNMG
Material Solid Carbide
