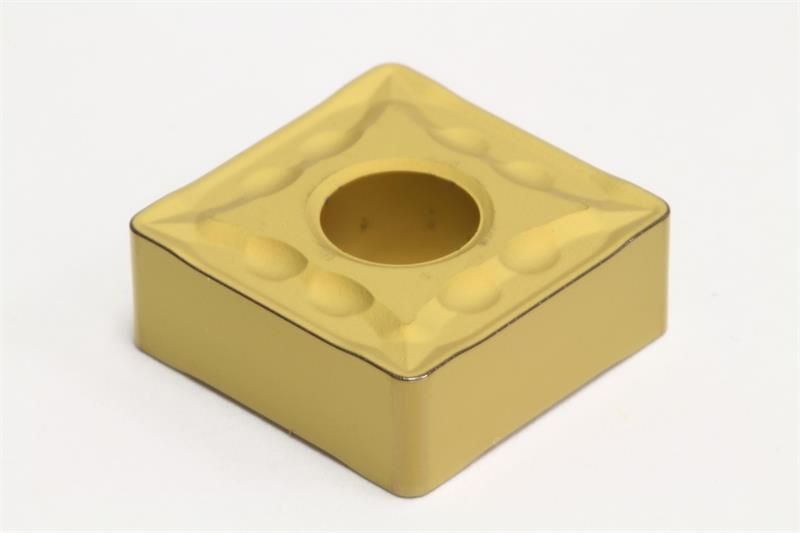

SNMG644 EMU AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SNMG644EMU AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Mounting Hole Diameter 0.3126 Inch
Brand Sumitomo
Corner Radius 0.0625 Inch
Insert Type Negative
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Shape Square
Grade AC830P
Insert Style SNMG
Number of Edges 4
Thickness 0.2500 Inch
Coating/Finish CVD
Inscribed Circle 0.7500 Inch
Product Name Turning Insert
Rake Angle 4 Degree
Chipbreaker Type EMU
Included Angle 90
Insert Size 644
