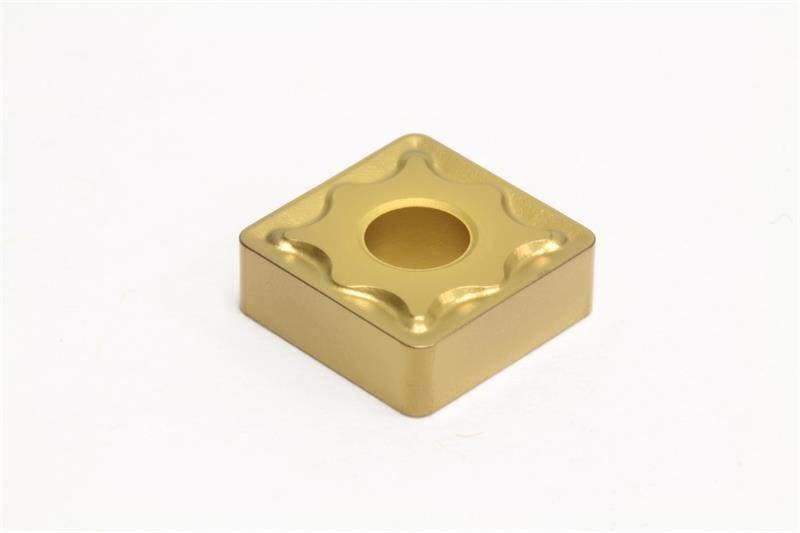

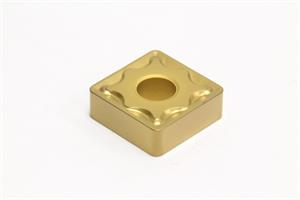

SNMG644 EUX AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SNMG644EUX AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EUX
Grade AC820P
Inscribed Circle 0.6250 Inch
Insert Type Negative
Mounting Hole Diameter 0.2500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Corner Radius 0.0625 Inch
Included Angle 90
Insert Style SNMG
Number of Edges 4
Thickness 0.2500 Inch
Material Solid Carbide
Shape Square
Insert Size 644
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
Rake Angle 0 Degree
