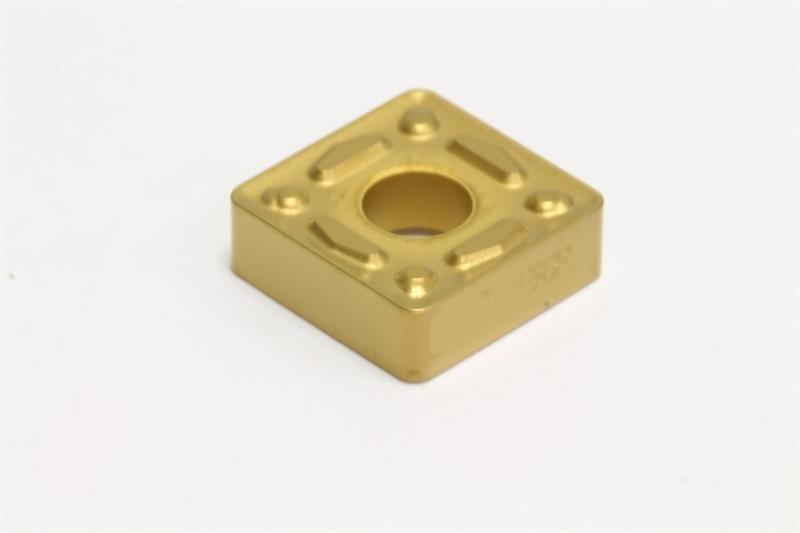

SNMG866 ENG AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SNMG866ENG AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Inscribed Circle 1 Inch
Insert Size 866
Mounting Hole Diameter 0.3622 Inch
Rake Angle 4 Degree
Relief Angle 0 Degree
Corner Radius 0.0938 Inch
Coating/Finish CVD
Insert Style SNMG
Number of Edges 4
Chipbreaker Type ENG
Insert Type Negative
Material Solid Carbide
Grade AC820P
Product Name Turning Insert
Shape Square
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Included Angle 90
Thickness 0.3750 Inch
