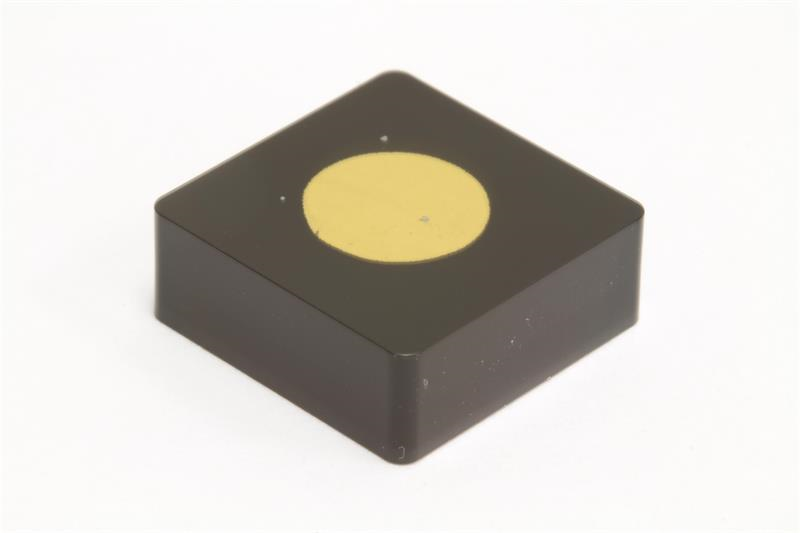

SNMN433 AC420K Grade, Proprietary Coated, Carbide Turning Insert

  • Item Code: SNMN433 AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 433
Material Solid Carbide
Coating/Finish CVD
Number of Edges 4
Chipbreaker Type No
Corner Radius 0.0469 Inch
Relief Angle 0 Degree
Shape Square
Included Angle 90
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Grade AC420K
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Insert Style SNMN
Insert Type Negative
Thickness 0.1875 Inch
