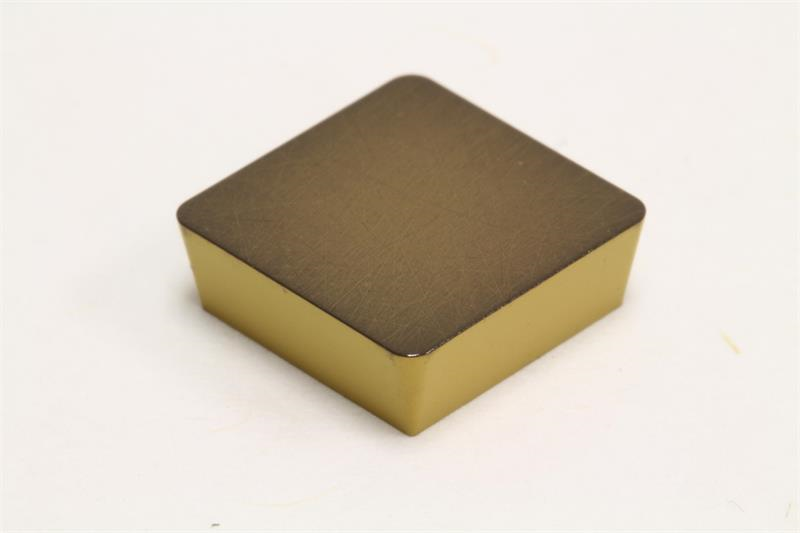

SPMN421 AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SPMN421 AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Grade AC820P
Insert Type Positive
Number of Edges 4
Relief Angle 11 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Included Angle 90
Product Name Turning Insert
Thickness 0.1250 Inch
Chipbreaker Type No
Shape Square
Insert Size 421
Brand Sumitomo
Corner Radius 0.0156 Inch
Insert Style SPMN
Material Solid Carbide
