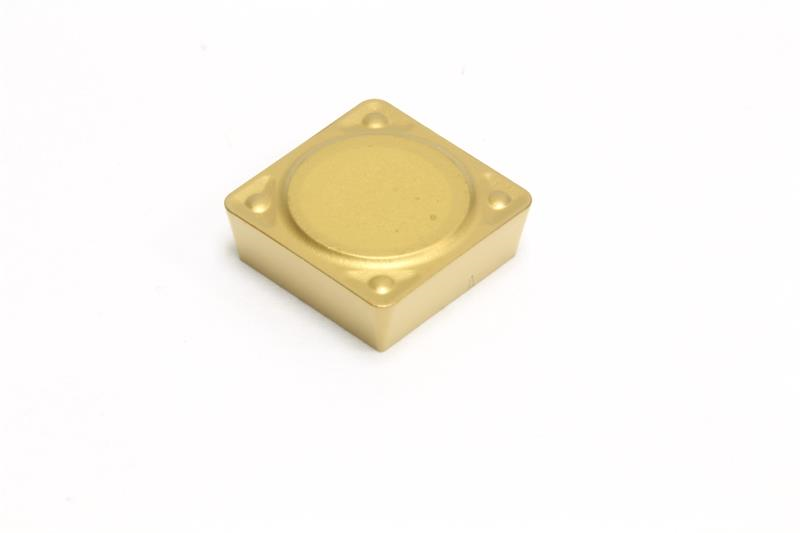

SPMR421 ENF AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SPMR421ENF AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 421
Insert Style SPMR
Brand Sumitomo
Product Name Turning Insert
Rake Angle 0 Degree
Chipbreaker Type ENF
Shape Square
Thickness 0.1250 Inch
Coating/Finish CVD
Included Angle 90
Material Solid Carbide
Grade AC820P
Insert Type Positive
Relief Angle 11 Degree
Inscribed Circle 0.5000 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0156 Inch
Number of Edges 4
