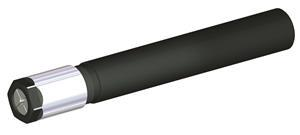

1/64 to 1/4 Inch Collet Capacity, 6.81 Inch Overall Length, Straight Shank, Series DA300 Collet Chuck
- Item Code: SS050DA304681
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series DA300
Industry-standard Erickson™ double-angle collet system collet system
Features
Back To Top- Original Erickson standard
- Versatile double-angle design providing approximately 1:1 grip
- Bonded style available for through-coolant applications
- Non-pullout style to captivate Weldon®-style end mills
- Dedicated versions for tapping €” driving off the square of the tap. Double
Tech Specs
Back To Top| Adjustment Range | 2.9840 Inch |
|---|---|
| Body Diameter | 0.3750 Inch |
| Clamping Length | 1.2700 Inch |
| Gage Length | 1.3900 Inch |
| Nut Diameter | 0.5600 Inch |
| Overall Length | 6.8100 Inch |
| Shank Diameter | 0.5000 Inch |
| Shank Length | 5.3600 Inch |
| Usable Length | 1.3900 Inch |
| Shank Style | Straight |
| Product Name | Collet Chucks |
| Brand | WIDIA-Erickson |
| Hand of Tool | Neutral |
