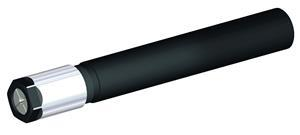

3/4 in. x 3.00 in. Double Angle Straight Shank Collet Chuck

  • Item Code: SS075DA204469
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Grip 1:1
    • Small outside diameter clearance is ideal for machining centers, close center-distance, and fixture problems

Tech Specs

Back To Top
Gage Length (mm) 42.164 mm
Gage Length (in.) 1.6600"
Overall Length (mm) 119.06 mm
Overall Length (in.) 4.6875"
Collet Series DA200
Lock Nut Dia. (mm) 21.336 mm
Lock Nut Dia. (in.) 0.8400"
Adapter/Shank/Bore Dia (mm) 19.05 mm
Adapter/Shank/Bore Dia (in.) 0.7500"
Coolant Thru No
Brand Widia-Erickson
